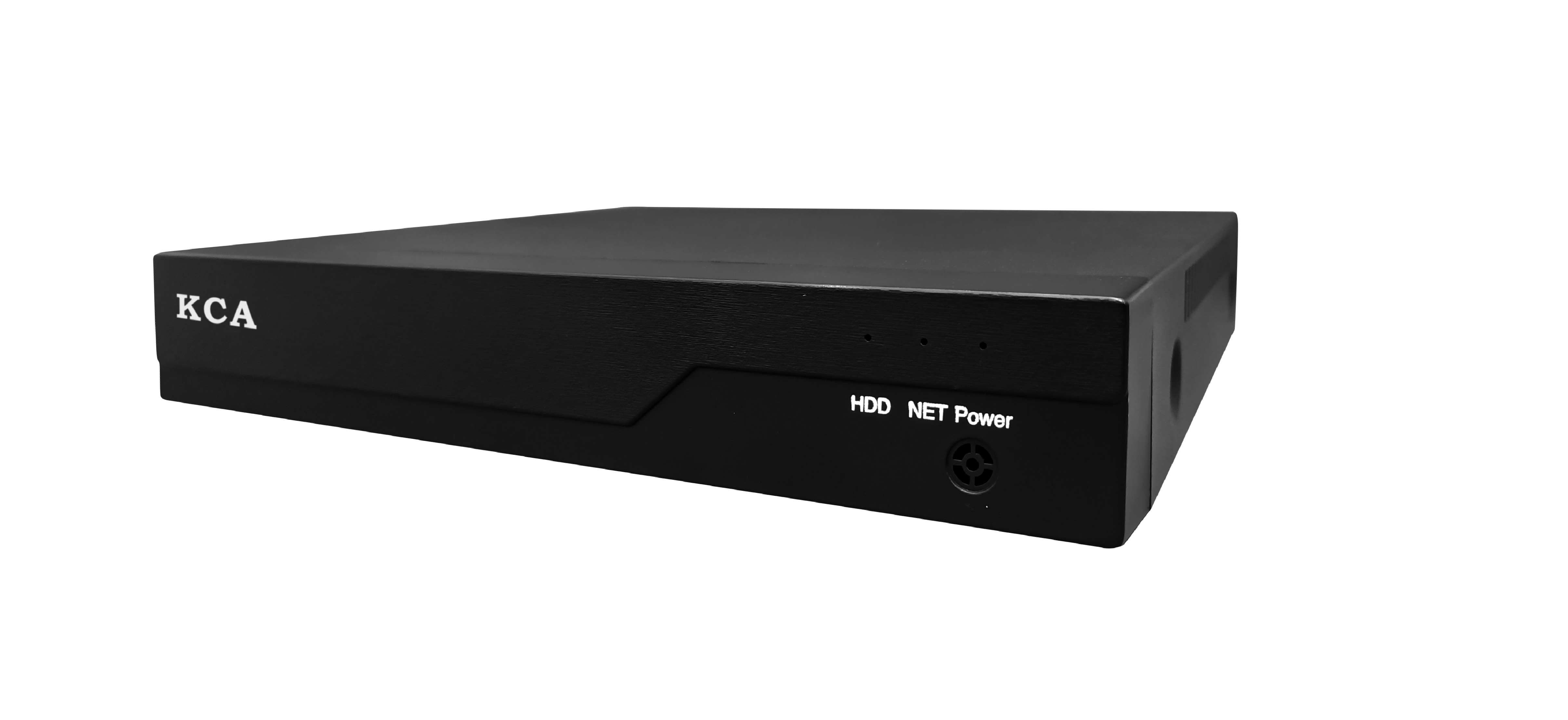

DI-1268X
5MP AHD Hybrid 8CH DVR(Coaxial Audio)
Specifications
- Real-time live display for 30/25fps each channel
- IP-CAM: 240/200fps@1080p/720p
- Analog: 96fps@5MP-lite, 120fps@4MP-lite, 160fps@3MP-lite,120fps@1080p, 240fps@1080p-lite/720p/960H
- HDMI(3840*2160), VGA (1920*1080), BNC x1
- Audio input/output
- Live digital zoom X2/X4
- Watermark
- Recording modes: manual/schedule/motion/alarm
- Pre-record: 0 - 10sec
- Post-record time: 0 - 60mins
- Playback search: motion, camera, video loss, event, date/time
- Loss detection/buzzer/event log
- Motion detection: supports configurable detection area and sensitivity
- Push alarm notification to mobile phone
- RS485: 2-pin PTZ control
- Supports 3G dongle
- Supports SATA HDD x1 (max:6TB)
- Partitions: configurable motion partition size and auto-overwrite
- Trigger: video loss, motion, alarm
- System recovery: auto power on after power loss recovery
- Watch dog timer
- Network: RS45 10M/100Mbps Ethernet connector
- Protocol: TCP/IP, HTTP, PPPoE, DHCP, DDNS, FTP, TSP
- Password security
- +12VDC, 36W max
- 0°C - +55°C
- 320(W) x 250(D) x 60(H) /0.8kg
