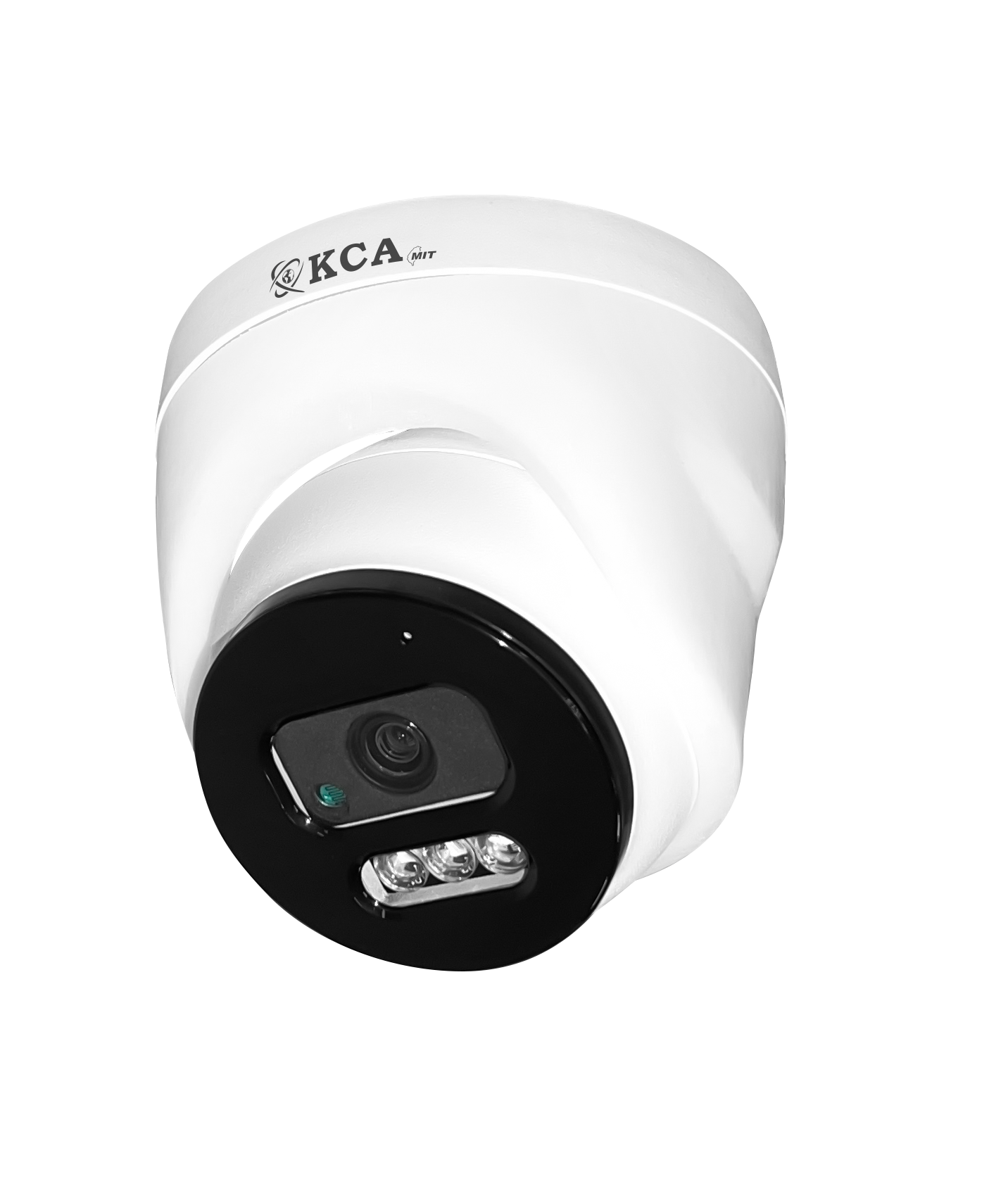

IP5277E-3.6
2MP Network Dome Camera w/ 25M IR
Specifications
- SoC Brand : Taiwan NOVATEK SoC
- Image Sensor : 1/2.7' 2MP CMOS Sensor
- Compression : Audio: G711
- Onvif : Profile S / Profile T
- Video Streaming : Dual Streams
- Video Resolution & Frame Rate
Main Stream: 1920x1080@30(25)fps, 1280x720@30(25)fps, 960x540@30(25)fps, 720x480@30(25)fps, 640x360@30(25)fps
Sub Stream: 720x480@30(25)fps, 640x360@30(25)fps, 360x240@30(25)fps, 320x180@30(25)fps
- Video Bit Rate: 64Kbps-8Mbps, Support CBR-VBR
- Wide Dynamic Range : HDR Mode up to 100dB (Normal), Linear Mode 82dB (Off)
- Digital Zoom : Yes
- White balance : Auto / Indoor / Outdoor / Manual
- Day/Night : Auto / Day mode / Night mode / External control
- Shutter / Exposure Model : Auto / 1/30(25) ~ 1/10000
- Digital Noise Reduction : 2DNR、3DNR
- Signal to Noise Ratio : ≦43db
- OSD Display : Camera name/ Date and Time, Display position can be adjusted
- Image Settings : Brightness, Saturation, Contrast, Sharpness, Image Enhancement, Anti-flicker,
Flip Mode Adjustable by Client Software or Web Browser
- Watermark : Yes
- ICR Lens : 3.6mm 3MP Lens (6mm optional)
- Min. illumination: 0.001 Lux @F1.2 ; 0 Lux @F1.2 (IR On)
- IR Range : 30M IR distance
- ROI (Region of Interest) : 4 Zones
- Privacy Mask : 8 Zones
- Audio In :Mic. in ; Audio Out :No
- Intelligent Detection Function : Motion Detection
- Optional: Video Tampering
- Network Interface : 10M / 100M Base-TX Ethernet
- Protocol : IPv4/HTTP/ HTTPS/ SMTP/DNS/DDNS/RTSP/TCP/UDP/DHCP/RTP/NTP/ARP/P2P
- Network Connections : 10
- Browser : IE/Edge/Chrome for Windows 11/10
- Remote : PC support Windows 11/10/8/7, App for Mac/iPhone/iPad/Android phone and Tablet PC
- POE (Power over Ethernet) : Build-in ; IEEE802.3af
- Waterproof : IP66
- Working Environment : -25℃～65℃, 0～90% RHG
- Dimension / Weight : 93(W) x 108(Ø) mm / 520g.
- Power Consumption : 12 VDC, max. 7 W
