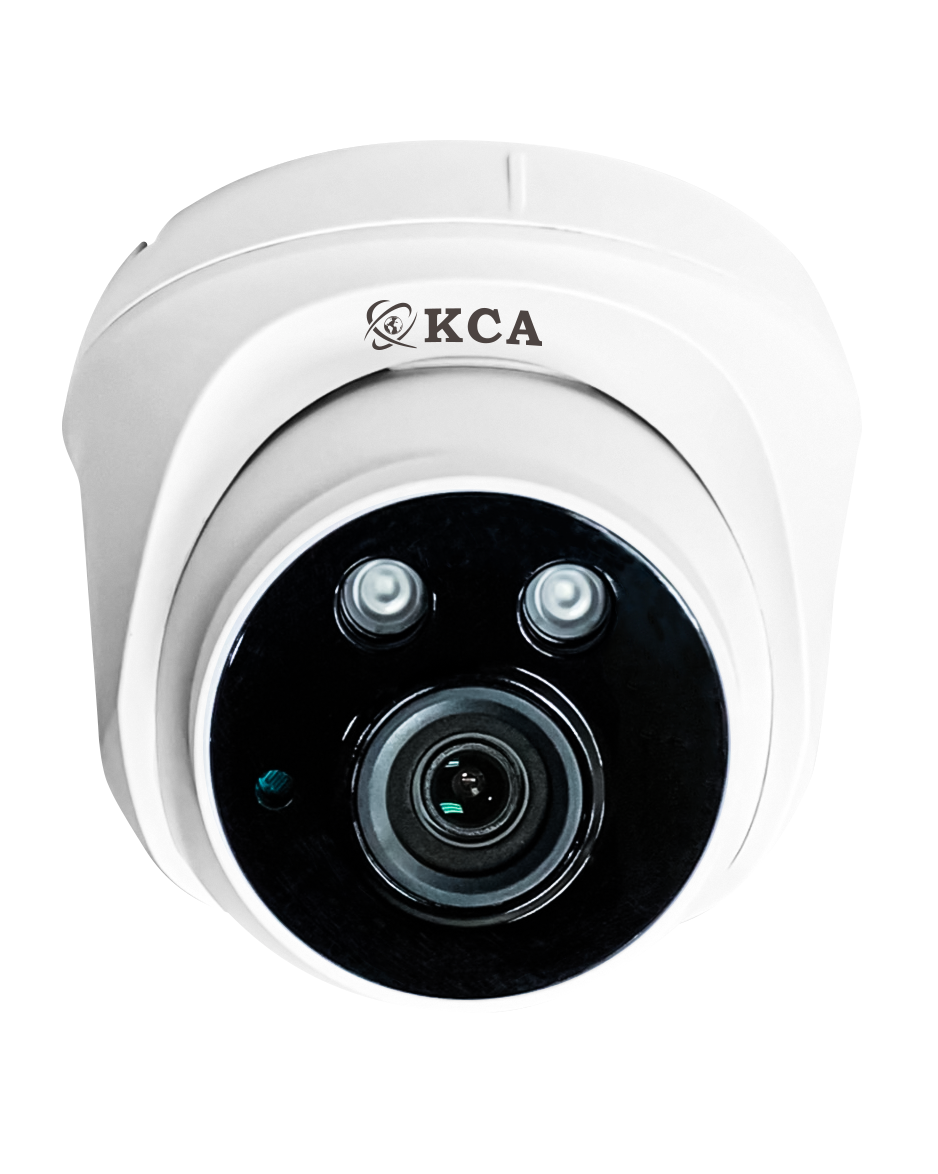

KI5268T 5MP Coaxial Audio IR Dome Camera
KI5269T 8MP Coaxial Audio IR Dome Camera
Specification
|
Model |
KI5266T |
KI5268T |
KI5269T |
|
Resolution |
2MP |
5MP |
8MP |
|
Image Sensor |
1/3” CMOS 2Mega sensor |
1/2.5” CMOS 5Mega sensor |
1/2.5” CMOS 8Mega sensor |
|
Effective pixels |
1920(H) x 1080(V) |
2592(H) x 1944(V) |
3840(H) x 2160(V) |
|
Video Mode |
AHD / TVI / CVI / CVBS |
||
|
Audio |
TVI mode support Coaxial Audio transmit |
||
|
Audio pick-up distance |
MIC-S/N Ratio -62db ≈ 5.0M |
||
|
Video Resolution & Frame Rate |
2MP 30FPS /25FPS NTSC/PAL |
5MP 20FPS/15FPS 4MP 30FPS/25FPS 2MP 30FPS/25FPS NTSC/PAL |
8MP 15FPS/12FPS 4MP 30FPS/25FPS 2MP 30FPS/25FPS NTSC/PAL |
|
UTC Coaxial Control |
Support UTC function |
||
|
Wide Dynamic Range |
DWDR / Automatic Shutter |
||
|
White balance |
Auto White balance |
||
|
Day/Night Model |
Auto / Color / BW / Outside (External control) |
||
|
Shutter / Exposure Model |
Auto |
||
|
Digital Noise Reduction |
2DNR、3DNR ON |
||
|
IR Range |
2pcs Array Led ; 20M IR distance |
||
|
Intelligent Infrared |
Support Intelligent Infrared (Avoid Overexposing) |
||
|
Signal to Noise Ratio |
More than 50dB |
||
|
OSD Menu |
Video Mode / Video Format / Language / Exposure / Day & Night / Image Setting |
||
|
Image Settings |
Image Mode, AWB, Brightness, Contrast, Sharpness, Saturation |
||
|
Lens |
3MP / 3.6mm ICR Lens |
5MP / 3.6mm ICR Lens |
6MP / 3.6mm ICR Lens |
|
Min. illumination |
0.03 Lux @F1.2 |
||
|
Working Environment |
Temperature -20℃～70℃, Humidity 0～90% RHG |
||
|
Dimension / Weight |
100(Ø) x 77(H) mm / 160g. |
||
|
Power Consumption |
DC12V |
||
