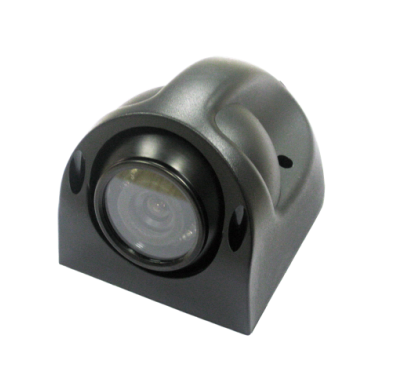

KG-3342
AHD 720p 8M IR CAR CAMERA


CATALOG : DOWNLOAD 1

Specifications



  • 1/3” SONY IMX225
  • Effective Pixel : 1280 (H) x 960 (V)
  • Scanning System : Profressive scan RGB CMOS
  • Sensitivity : 0 Lux  (IR ON )
  • Infrared Ray LED : 12 pcs
  • Synchronizing System : Internal Sync., 2:1 Interlace
  • Mirror Function
  • Auto Gain Control
  • Backlight Compensation AUTO
  • Noisy Reduction : 3D
  • S/N Ratio More than 50dB (AGC OFF)
  • Gamma Compensation 0.45
  • Electronic Shutter : Auto【 1/60(50)~1/110,000】
  • Video Output : AHD  1.0Vp-p75Ω
  • Lens Mount : 3.6mm megapixel lens  (2.5 – 12mm optional)
  • Waterproof  IP67
  • Adjusting Degree : Pan +/- 180 degree  ;  Tilt 0-50 degree
  • DC 12V  /  80mA (LED off) / 140mA (LED on)
  • 57.3 (Ø) x 83 (H) mm  /  140g
  • Operating Temperature : - 25℃~+70℃
