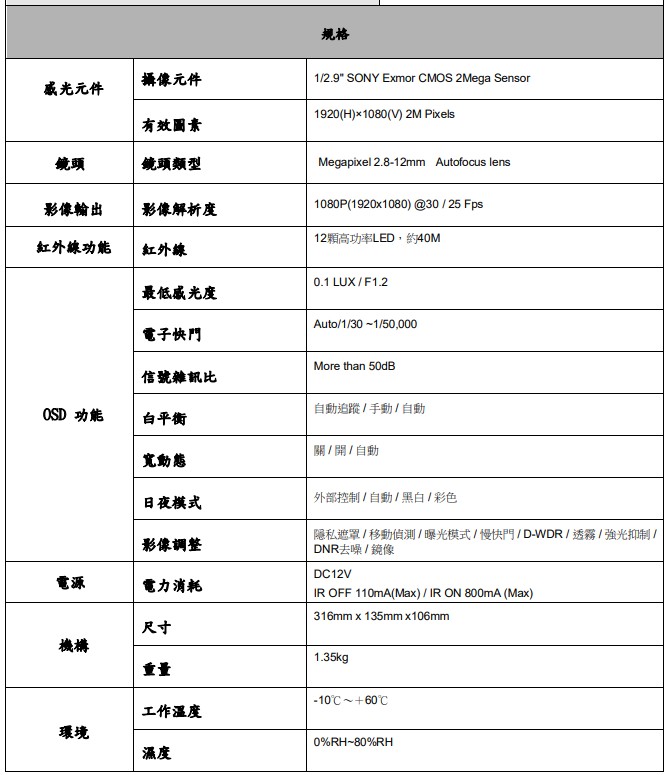

Image Sensor |
Image Device |
1/2.9" SONY Exmor CMOS 2Mega Sensor |
Scan System |
Progressive Scan |
|
Effective Pixel |
1920(H)×1080(V) 2M Pixels |
|
Lens |
Mount |
Megapixel 2.8-12mm Autofocus lens |
Video Output |
Output Resolution (AHD) |
1080P(1920x1080) @30/25Fps |
OSD function |
Min. Illumination |
0.1 LUX / F1.2 |
Shutter Speed |
Auto/1/30 ~1/50,000 |
|
S/N Ration |
More than 50dB |
|
AWB |
ATW / LOCK / MANUAL |
|
WDR |
Off / D-WDR / BLC / HSBLC |
|
True Day & Night |
Color / B&W / Auto / Extern |
|
Camera Setting |
COM. / VIDEO OUTPUT MODE / LANGUAGE / FW VER. |
|
Picture Adjustment |
SHARPNESS / COLOR GAIN / SHADING MIRROR / FLIP / DNR / SENSE-UP / DEFOG / DNR PRIVACY / MOTION |
|
Electricity |
Power Consumption |
DC12V IR OFF 110mA(Max) / IR ON 800mA (Max) |
Mechanical |
Dimension |
316mm x 135mm x106mm |
Weight |
1.35kg |
|
Environment |
Operation Temperature |
-10℃~+60℃ |
Humidity |
0%RH~80%RH |
